Engine

型号Model

WP12.3430E201

燃料类型Fuel Type

柴油diesel

排放标准Emission

欧II euro 2

额定功率(kw/HP)

Rate Power(kw/HP)

430HP

最大扭矩/转速（N.m/rpm）

Max. Torque/Rotate speed

2000N.m/1000-1400/rpm

排量 (L)Displace (L)

11.596L

油箱Fuel Tanker Capacity（L）

400L aluminum

离合器Clutch

型号

∮430

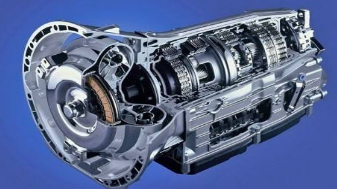

变速箱Transmission

Fast 12 gears, 12 forward, 2 reverse ,model 12JSD200T-B

法士特12档变速箱，12个前进挡2个倒挡，型号12JSD200T-B

转向系统Steering System

型号Model

国产左舵

悬挂系统Suspension System

前悬挂Front Suspension

Multi leafspring front and rer+4 riding bolts

后悬挂 Rear Suspension

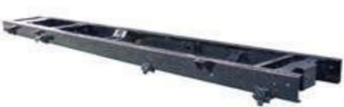

车架Cross

截面尺寸Section Dimension Frame（mm）

850×300(8+7)

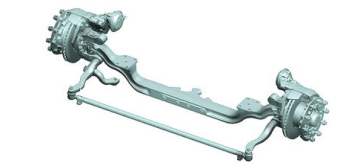

前轴Front Axle

MAN 9.5 T

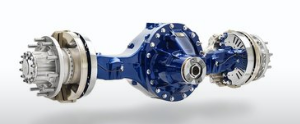

后桥Rear Axle

2*16T MAN Double reduction , ratio speed4.769

2*16T MAN双级减速桥，,速比4.769

轮胎Tire

12.00R20

轮胎数量Qty Of Tire

10+1

蓄电池Battery

165Ah Battery 165Ah蓄电池

驾驶室Cab

Interior Trimming：

F2000 length thermal cabin with A/C,  hydraulic driver seat with seatbelts、hydraulic suspension of cab ,mechanical clerestory ,regular rear window, manual cab flipping , Iron bumper 整体内饰：

F3000加长平顶驾驶室、液压主座椅、四点悬浮液压悬浮驾驶室、手动摇窗机、普通后视镜、驾驶室手动翻转、弗列加空调、F3000冷却系、铁保险杠

鞍座Fifth Wheel

90#鞍座、平板连接板

Price

其他 Others

1、 付款方式：30%预付款T/T，70%余款款到发货.

Payment : 30% advance payment By T/T, the balance 70% will paid before delivery ；

2、 交货期（塔什干）：预付款后50个工作日。

Delivery date（Tashkent）: Within 50 working days after receipt of the prepayment of 30% total value

3、 报价有效期：1个月

Valid period：one month
